Recycled Materials in Stretch Film Extrusion Machine: Application & Equipment

The application of PCR (post-consumer recycled) and PIR (post-industrial recycled) materials in stretch film production is rapidly increasing as the packaging industry moves toward sustainable manufacturing. Modern stretch film extrusion machines are specially engineered to process recycled polyethylene materials while maintaining stable film quality, strong puncture resistance, high stretchability, and reliable cling performance.

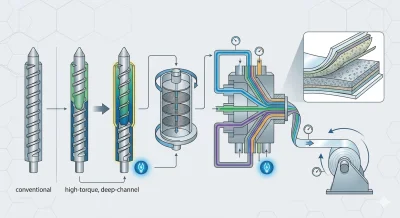

Compared with conventional single-layer extrusion equipment, advanced multi-layer stretch film machines provide better melt stability and production efficiency when processing recycled materials. PCR and PIR resins often contain impurities, unstable melt flow indexes, and inconsistent particle sizes, which can easily cause gel formation, pressure fluctuation, uneven film thickness, and filter blockage during extrusion. To solve these problems, modern stretch film extrusion machines adopt high-torque screw designs with deeper feed channels and optimized compression ratios, allowing more stable plasticizing performance and lower thermal degradation during high-speed operation.

Continuous melt filtration systems are also critical for recycled material processing. Fully automatic stretch film machines are commonly equipped with continuous screen changers using 80–120 mesh filtration technology to remove contaminants without interrupting production. This improves melt cleanliness, stabilizes extrusion pressure, reduces downtime, and ensures smoother film surfaces with lower scrap rates.

Multi-layer co-extrusion technology further improves the application of recycled materials in stretch film manufacturing. In a 2- 5-layer stretch film machine, recycled materials are typically distributed within the core layer, while high-performance virgin materials remain on the outer layers to maintain cling performance, surface smoothness, and coefficient of friction. This structure allows high recycled content ratios while preserving film strength, puncture resistance, and load retention performance required for industrial pallet wrapping applications.

A 5-layer stretch film machine provides greater flexibility for layer ratio adjustment and recycled material control, making it suitable for high-performance stretch film production with elevated PCR or PIR content. At the same time, fully automatic stretch film machines equipped with servo-driven winding systems, adaptive melt pressure control, and synchronized extrusion technology can maintain stable output even when recycled resin quality fluctuates. These systems also improve energy efficiency and production consistency during continuous operation.

Today, recycled-material stretch film extrusion machines are widely used in logistics packaging, warehouse pallet wrapping, industrial transport packaging, and heavy-duty cargo protection. By combining advanced screw technology, continuous filtration systems, and multi-layer co-extrusion structures, modern stretch film extrusion equipment can significantly increase recycled material utilization while maintaining high film performance and stable industrial production efficiency.
