Inconsistent extrusion pressure is a critical factor affecting productivity in co-extrusion lines. Fluctuating pressure leads to gauge variation, weak tear resistance, and frequent die lip buildup—technical challenges that increase raw material waste and machine downtime. Optimizing resin formulation within a stretch film making machine is essential to unlocking stable melt output and achieving precise thickness control.

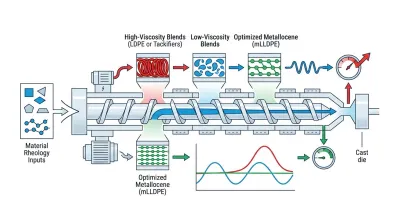

The Mechanism: How Material Rheology Drives Extruder Back Pressure
At the core of every stretch film extruder, whether a 2-layer cast line or a 5-layer blown film system, the screw must convert solid resin pellets into a homogeneous melt. The resin’s melt flow index (MFI), molecular weight distribution (MWD), and additive packages directly alter melt viscosity.
- High-Viscosity Blends: Require significantly higher back pressure to maintain consistent throughput.
- Low-Viscosity Blends: May cause sudden pressure drops, reducing melt homogeneity and causing gauge variation.
Material Selection and Pressure Dynamics
- Metallocene LLDPE (mLLDPE): Incorporating a high-MI metallocene LLDPE in a 3-layer stretch film machine structure can lower extrusion pressure by 15% to 20% compared to conventional LLDPE. This allows for faster screw speeds without exceeding motor torque limits.
- LDPE and Tackifiers: Conversely, overloading LDPE or heavy-tack formulations in a 5-layer stretch film line can cause severe pressure spikes. If the pressure exceeds the safe threshold of the hydraulic screen changer, it can lead to screen rupture and unscheduled stops.
Technical Benefits of Stable Extrusion Pressure
Maintaining stable melt pressure within a stretch film machine directly optimizes both product physics and mechanical longevity:
1. Enhanced Film Quality and Down-Gauging
- Gauge Accuracy: Reduces gauge band variation from ±3 microns to ±1 micron.
- Mechanical Strength: Improves film elongation from 200% to over 350% and enhances puncture resistance.
- Material Savings: Enables successful down-gauging by 10% to 15% while fully preserving load retention.
2. Reduced Scrap Rates
- On a high-capacity 5-layer stretch film line producing 600 kg/hour, pressure stability cuts scrap rates by 2% to 3% through the elimination of gauge fluctuations.
3. Extended Machine Lifespan
- Minimizing peak pressure spikes reduces mechanical fatigue on critical components, extending the service life of the melt pump and extrusion die on both semi-automatic stretch film machines and fully automated lines.
Why Our Stretch Film Making Machines Excel in Pressure Stability
To handle complex and modern resin recipes without sacrificing productivity, the industry requires hardware designed for precision pressure management. Our next-generation stretch film making machines are specifically engineered to bridge the gap between advanced material formulation and stable extrusion physics.
1. Closed-Loop Automated Control and Precision Dosing
Our 2-layer, 3-layer, and 5-layer stretch film machines feature fully integrated, intelligent gravimetric dosing systems with closed-loop automation. When processing sensitive resins like hexene, metallocene, or high-tack mLLDPE, our machines automatically detect micro-trends in melt pressure. The closed-loop control system immediately recalibrates the dosing ratios at the co-extrusion feedblock, maintaining optimal back pressure without manual intervention.
2. PMSM Direct Drive Technology for Instant Torque Response
Instead of traditional high-maintenance gearboxes, our fully automatic stretch film lines utilize state-of-the-art Permanent Magnet Synchronous Motors (PMSM) for direct screw drive. The PMSM technology delivers exceptional torque consistency and instantaneous speed micro-adjustments. This precise dynamic response directly dampens any sudden pressure fluctuations caused by resin composition variations, ensuring a completely uniform melt flow.
3. Advanced Screw and Barrel Design for Low-Pressure Nano-Formulations
The specialized screw geometry utilized in our stretch film making equipment maximizes shear efficiency while minimizing friction-induced pressure spikes. This specific mechanical architecture ensures that even when running complex nano-layer formulations or high-viscosity recycled materials, the machine achieves superior melt homogeneity under a significantly lowered and stabilized pressure profile, preventing screen rupture and eliminating gauge-band drifting during 24/7 continuous high-speed production.
