In high-speed extrusion lines, manual roll replacement causes severe web tension fluctuations, material waste, and costly downtime. The integration of an automatic core changer for stretch film making machine eliminates these operational bottlenecks by enabling precise, high-speed core exchanges without slowing down the production line. This technology ensures uninterrupted winding sequences on modern 2-layer, 3-layer, and 5-layer cast film extrusion lines.

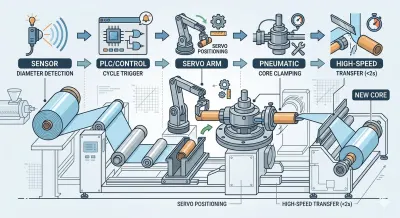

Technical Workflow: How the Automatic Core Changer Works
The system operates through a fully automated, closed-loop sequence that coordinates advanced sensing technologies with high-precision mechanical actuators:
- Real-Time Diameter Detection: High-speed optical sensors continuously monitor the outer diameter of the winding roll to calculate the exact film length.
- Synchronized Cycle Triggering: Once the roll reaches its preset specification, the central control system instantly initiates the automatic changeover program.
- Precision Servo Positioning: Servo-driven mechanical arms transition the new, empty paper core into the standby position with micrometer-level precision.
- Secure Pneumatic Clamping: Heavy-duty pneumatic chucks automatically grasp and secure the new core into the secondary winding station before the cut.
- High-Speed Web Transfer: The integrated cutting system severs the film web and seamlessly transfers it onto the new core in less than two seconds.
Engineering Benefits and Performance Metrics
- Optimized Web Tension Control: The ultra-fast changeover mechanism prevents gauge variations, film wrinkling, and web breakage during transfer.
- Minimized Roll-Change Downtime: Automating the winding exchange cycle reduces traditional roll-change downtime by up to 95%, significantly increasing overall equipment effectiveness.
- Preserved Film Quality: Maintaining consistent winding tension preserves the critical mechanical properties, tear resistance, and stretch ratios required for high-performance stretch films.
- Universal Line Integration: The modular and compact mechanical design allows this automatic core changer to be integrated into existing winders or engineered directly into new high-speed lines.
