High Efficiency Industrial Bubble Film Extrusion Machine with Smart PLC

The global demand for protective packaging continues to surge, driven by the rapid expansion of e-commerce and electronics logistics. Among various materials, air bubble film remains an indispensable solution due to its lightweight and superior cushioning performance. However, manufacturers facing fierce market competition often struggle with aging machinery that compromises their profit margins. Transitioning to a high-efficiency industrial bubble film extrusion machine with Smart PLC is no longer a luxury but a strategic necessity to maintain market relevance. Modern production lines must balance speed, raw material versatility, energy conservation, and automated precision to thrive in today's industrial landscape.

Traditional manufacturing methods frequently hinder growth due to inherent hardware and software limitations. Upgrading to advanced, automated extrusion systems allows factories to significantly boost output while drastically reducing operational overhead.

Technical Challenges and Operational Bottlenecks in Traditional Extrusion

Escallating Energy Consumption and Resource Waste

Older generation bubble film machines rely on outdated heating bands and inefficient AC motors that consume excessive amounts of electricity. Because thermal insulation on these legacy systems is often poor, substantial heat radiates into the workshop, forcing auxiliary cooling systems to work harder. Furthermore, traditional extruders struggle to process recycled resins cleanly. This forces factory owners to rely almost exclusively on expensive virgin polymer granules, inflating raw material expenses and limiting eco-friendly branding initiatives.

Low Automation Levels and Heavy Reliance on Labor

Traditional extrusion setups require constant manual calibration by skilled operators. Controlling film thickness, adjusting line speed, and managing the tension of the winding station are handled via separate, disconnected analog dials. This fragmentation makes the entire manufacturing process highly vulnerable to human error. A minor oversight during roll changeovers can trigger immediate film snapping or uneven tension, causing severe material waste and costly, unexpected production halts.

Unstable Film Quality Under High-Speed Operation

When legacy machinery attempts to ramp up linear output speeds, the physical limitations of the hardware quickly become apparent. Inconsistent melt pressure inside the die block creates structural vulnerabilities across the film web, resulting in uneven bubble thickness and low puncture resistance. Bubbles frequently burst during the forming stage or lose their air pressure rapidly after conversion, leading to premium customer rejections and damaged reputations in strict industrial sectors.

Protracted Maintenance Windows and Complex Troubleshooting

Without centralized diagnostics, identifying the root cause of a mechanical or electrical failure on a traditional line turns into a lengthy trial-and-error process. Technicians must manually check countless relays, wiring terminals, and individual temperature controllers. This lack of transparency leads to extended machine downtime, disrupted production schedules, and missed shipping deadlines for critical business contracts.

Engineering Breakthroughs in Core Component Design

Precision Alloy Screws and Advanced Extruder Barrels

The foundational strength of a high-efficiency industrial bubble film extrusion machine with Smart PLC lies within its specialized screw geometry. Utilizing high-grade 38CrMoAlA alloy steel treated with precise nitriding and bimetallic coatings, the extrusion screw maximizes shearing efficiency while minimizing friction wear. The flight layout features dedicated mixing and barrier zones that homogenize the polymer melt perfectly, enabling smooth processing of up to 100% recycled LDPE and LLDPE pellets without sacrificing structural integrity.

Optimized T-Die Blocks and High-Performance Forming Rollers

Melt distribution across the film width is governed by a heavy-duty T-die engineered using premium tool steel and internal chrome plating. The flow channels follow an optimized coat-hanger layout to ensure uniform pressure and velocity from the center to the edges. Positioned directly beneath the die, the bubble forming roller features a deep internal helical water cooling jacket. CNC-machined vacuum forming cavities on the roller surface shape bubbles with immaculate consistency, high clarity, and exceptional load-bearing strength.

Integrated Smart PLC Systems and Centralized Bus Architecture

The digital heart of the modern extrusion line is an industrial-grade Smart PLC controller running on a high-speed fieldbus communication network. This centralized computer continuous monitors barrel temperatures, melt pressures, motor frequencies, and line tension profiles simultaneously. By deploying closed-loop PID control loops, the PLC automatically recalibrates heating zones and drive speeds within milliseconds of detecting a minor deviation, completely eliminating manual operational adjustments.

Non-Stop Winding Systems with Automatic Tension Management

Downstream efficiency is guaranteed by a dual-shaft turret winding station driven by high-torque servo motors. Precision ultrasonic sensors continuously measure the growing roll diameter, sending instant feedback to the PLC to smoothly modulate winding tension. When a roll reaches its exact pre-programmed linear length, an integrated pneumatic flying knife executes a clean, high-speed crosscut. The system automatically transfers the film web to the empty standby core without dropping line speeds or risking wrinkles.

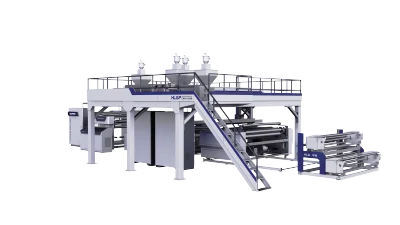

Comprehensive Manufacturing Advantages of the HLPE Series

Maximized Industrial Output and Faster Order Fulfillment

The HLPE series high-efficiency industrial bubble film extrusion machine with Smart PLC delivers exceptional linear production speeds that far exceed conventional industry benchmarks. By combining high-torque driving systems with advanced melt-delivery design, the machinery ensures stable, high-volume extrusion twenty-four hours a day. Packaging plants can fulfill large-scale distributor contracts much faster, optimize warehouse inventory turns, and confidently accept urgent, time-sensitive custom orders.

Intuitive User Interfaces and Recipe Storage Capabilities

Operating the HLPE series is straightforward due to an ergonomic, multi-language touchscreen HMI paired with the Smart PLC framework. Operators can easily save complete production profiles—including exact temperature curves, blower speeds, and tension settings—directly into the machine memory. Transitioning production from a lightweight 2-layer electronics wrap to a heavy-duty industrial film takes just a few taps on the screen, drastically reducing changeover times and lowering onboarding barriers for new factory staff.

Substantial Energy Savings and Eco-Friendly Production

Environmental sustainability and cost reduction are deeply embedded into the architecture of the HLPE series. The extrusion barrels are wrapped in high-efficiency ceramic heating elements and covered with multi-layer thermal insulation blankets, minimizing heat loss. Coupled with premium IE4-rated energy-saving motors and variable frequency drives, the HLPE series slashes total electrical consumption by over twenty percent compared to legacy equipment, directly enhancing bottom-line profitability.

Multi-Layer Configuration Options and Material Versatility

The modular layout of the HLPE series enables flexible custom setups to match specific target markets. It configures easily for standard 2-layer or 3-layer bubble structures, and can integrate auxiliary laminating units for inline lamination with online materials like kraft paper, PE film, aluminum foil, or expanded polyethylene (EPE) foam. This versatility allows manufacturers to produce premium technical insulation barriers, heavy-duty moving wraps, and specialized anti-static packaging on a single, unified machinery asset.

Optimizing Factory ROI with Smart Diagnostics and Global Support

Investing in a high-efficiency industrial bubble film extrusion machine with Smart PLC extends beyond immediate output increases; it establishes a future-proof foundation for smart manufacturing. The intelligent PLC architecture includes built-in Ethernet gateways, enabling secure remote diagnostic access. Factory managers and offsite engineers can monitor real-time performance analytics, review fault logs, and apply system updates from anywhere globally, preventing costly maintenance visits and keeping production schedules on track.

Every HLPE series machine is built with durable components designed to withstand rigorous, around-the-clock industrial environments. From robust physical frames that suppress high-speed vibrations to premium electrical switches housed inside climate-controlled control cabinets, every detail is engineered to extend service life and maximize return on investment. Upgrading to this intelligent, high-efficiency system empowers protective packaging companies to reduce waste, lower labor costs, and supply premium bubble packaging materials that consistently exceed international quality standards.
