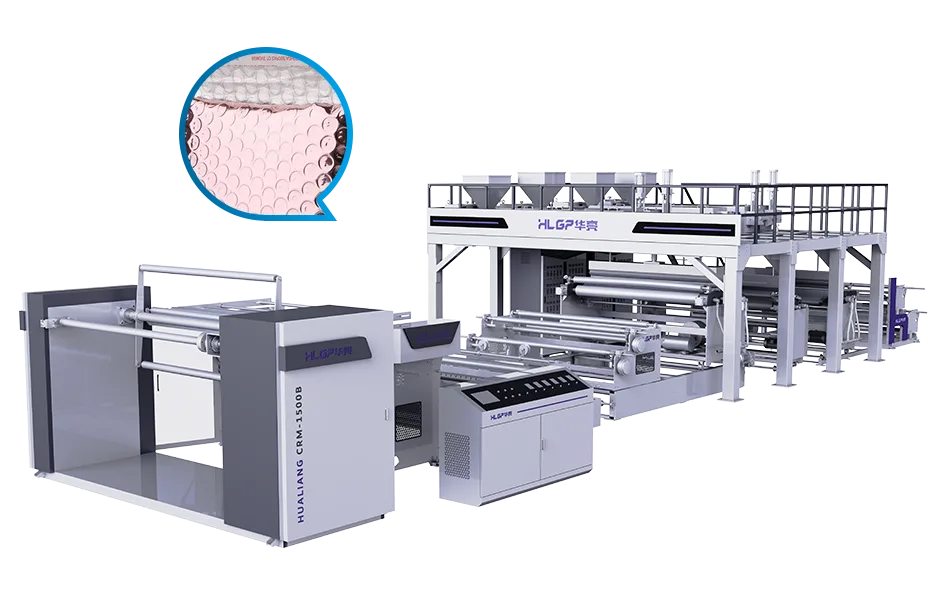

7-Layer High-Speed Bubble Film Machine: Performance & Industrial Applications
In modern supply chain systems, conventional packaging is no longer sufficient for sensitive and high-value products. The introduction of the 7-layer high-speed bubble film machine has significantly advanced protective packaging technology by enabling the integration of multiple functional resins into a single high-performance cushioning structure.
Through advanced multi-layer co-extrusion technology, manufacturers can precisely engineer each layer of the film to meet specific performance requirements across industries such as electronics, medical devices, cold chain logistics, and precision engineering.
Key Industrial Applications and Technical Performance Standards
The strength of 7-layer bubble film technology lies in its ability to customize layer structures for different industrial requirements. Each configuration delivers targeted functional performance to ensure product safety during storage and transportation.
1. Electronics Industry: ESD-Safe Protection
In the electronics sector, electrostatic discharge (ESD) protection is essential for sensitive components such as semiconductors, circuit boards, and microchips.
Typical Structure: Anti-static layer / Bubble layer / PE layer
Key Performance: Surface resistivity typically controlled within 10⁶–10⁹ Ω, ensuring stable electrostatic discharge protection throughout packaging and transportation.
2. Cold Chain Logistics: Thermal Insulation & Moisture Barrier
Temperature-sensitive products such as pharmaceuticals, fresh food, and biological materials require stable thermal protection and low moisture permeability.
Typical Structure: Metallized barrier layer / Bubble layer / Sealing layer
Key Performance: Water Vapor Transmission Rate (WVTR) can be reduced to ≤ 2.0 g/m²·24h, providing excellent insulation and moisture resistance to maintain product integrity during transit.
3. Medical Packaging: Sterile Barrier Compliance
Medical devices require strict hygienic protection and structural reliability to maintain sterility and safety standards.
Typical Structure: Antimicrobial layer / Bubble layer / High-strength PE layer
Key Performance: Designed to comply with ISO 11607 sterile barrier packaging standards, ensuring safe containment and contamination resistance for medical instruments.
4. Precision Instruments: High Puncture Resistance
Industrial equipment, optical instruments, and precision components require packaging with high mechanical strength and impact resistance.
Typical Structure: Toughened layer / Bubble layer / Abrasion-resistant layer
Key Performance: Puncture resistance typically reaches ≥ 3.5–5.0 N, providing reliable multi-impact protection during logistics handling.
Advantages of a 7-Layer High-Speed Co-Extrusion Line
Investing in a 7-layer bubble film production line delivers significant competitive advantages for manufacturers:
- Material Optimization: Enables the use of recycled resins in inner layers while maintaining high-performance functional outer layers
- Improved Air Retention: Multi-layer molecular structure enhances bubble stability and long-term cushioning performance
- High Precision Control: Advanced PLC system maintains thickness tolerance within ±3%, reducing material waste and ensuring consistent quality
- Energy Efficiency: Optimized heating and extrusion system reduces overall energy consumption while maintaining high output efficiency
Future of Functional Protective Packaging
As global logistics and supply chains become increasingly complex, demand for high-performance functional packaging continues to grow. The 7-layer high-speed bubble film machine provides a future-ready solution for producing advanced protective materials with tailored performance characteristics.
From ESD-safe electronic packaging to ISO-compliant medical barrier films, this technology represents a core foundation for next-generation industrial packaging production.
